Functional poperties of the MEG-informed parcellations

Import the required packages

import os.path as op
import numpy as np
import pickle

from mne import (read_forward_solution, pick_types_forward,
                 convert_forward_solution, read_source_spaces,
                 read_labels_from_annot)
from mne.datasets import sample

import megicparc
from megicparc.utils import compute_inv_op_rank, collapse_RM

import matplotlib.pyplot as plt

Define input parameters for the flame algorithm running in megicperc

gamma_tot = np.arange(0, 1.01, 0.2)
knn_tot = [10, 20, 30, 40]
theta = 0.05
parc = 'aparc'
sensors_meg = 'grad'

folder_fl = op.join('..', 'data', 'data_mne_sample')
string_target_file = op.join(folder_fl,
                        '{:s}_flame_grad_k{:d}_gamma{:1.2f}_theta{:1.2f}.pkl')

Load lead-field matrix, source-space and anatomy-based Atlas

data_path = sample.data_path()
subjects_dir = op.join(data_path, 'subjects')
subject = 'sample'
fwd_file = op.join(data_path, 'MEG', subject, 'sample_audvis-meg-eeg-oct-6-fwd.fif')
src_file = op.join(folder_fl, 'source_space_distance-src.fif')

fwd = read_forward_solution(fwd_file)
fwd = pick_types_forward(fwd, meg=sensors_meg, eeg=False,
                         ref_meg=False, exclude='bads')
fwd = convert_forward_solution(fwd, surf_ori=True, force_fixed=True,
                               use_cps=True)
src = read_source_spaces(src_file)
fwd['src'] = src

label_lh = read_labels_from_annot(subject=subject, parc=parc, hemi='lh',
                                  subjects_dir=subjects_dir)
label_rh = read_labels_from_annot(subject=subject, parc=parc, hemi='rh',
                                  subjects_dir=subjects_dir)
label = label_lh + label_rh

Reading forward solution from /u/29/sommars1/unix/mne_data/MNE-sample-data/MEG/sample/sample_audvis-meg-eeg-oct-6-fwd.fif...
    Reading a source space...
    Computing patch statistics...
    Patch information added...
    Distance information added...
    [done]
    Reading a source space...
    Computing patch statistics...
    Patch information added...
    Distance information added...
    [done]
    2 source spaces read
    Desired named matrix (kind = 3523) not available
    Read MEG forward solution (7498 sources, 306 channels, free orientations)
    Desired named matrix (kind = 3523) not available
    Read EEG forward solution (7498 sources, 60 channels, free orientations)
    Forward solutions combined: MEG, EEG
    Source spaces transformed to the forward solution coordinate frame
    203 out of 366 channels remain after picking
    Average patch normals will be employed in the rotation to the local surface coordinates....
    Converting to surface-based source orientations...
    [done]
    Reading a source space...
    Computing patch statistics...
    Patch information added...
    Distance information added...
    [done]
    Reading a source space...
    Computing patch statistics...
    Patch information added...
    Distance information added...
    [done]
    2 source spaces read
Reading labels from parcellation...
   read 34 labels from /u/29/sommars1/unix/mne_data/MNE-sample-data/subjects/sample/label/lh.aparc.annot
Reading labels from parcellation...
   read 34 labels from /u/29/sommars1/unix/mne_data/MNE-sample-data/subjects/sample/label/rh.aparc.annot

Parameters for inverse modeling

snr = 3
lam = 1. / snr
method = 'dSPM' # dSPM or MNE or sLORETA
depth = None
mode_labels = 'mean_flip'

n_vert = fwd['src'][0]['nuse'] + fwd['src'][1]['nuse']
L = fwd['sol']['data']
sigma = np.mean(np.mean(L**2, axis=0)) / snr
C = sigma * np.eye(L.shape[0])

Initialization

eucl_errors_full = []
eucl_errors = {x : [] for x in \
    ['k%d_gamma%1.2f'%(knn, gamma) for knn in knn_tot for gamma in gamma_tot]}

correct_roi = np.zeros((np.size(knn_tot), np.size(gamma_tot)))
correct_roi_full = np.zeros((np.size(knn_tot), np.size(gamma_tot)))

dist_index = np.zeros((np.size(knn_tot), np.size(gamma_tot)))

Analysis with anatomy-based parcels.

proj_anrois = megicparc.labels_to_array(label, fwd['src'])
if proj_anrois['outliers'] > 0:
    aux_num_roi = len(proj_anrois['parcel']) - 1
else:
    aux_num_roi = len(proj_anrois['parcel'])

# Source estimation and localization error on full source space
W_full = compute_inv_op_rank(L, C, lam,
                    depth=depth, method=method, rank=None)
R_full = np.dot(W_full, L)
peak_full = np.argmax(R_full**2, axis=0)

ee_full = megicparc.compute_localization_error(peak_full,
                                 np.arange(n_vert), fwd['src'])
eucl_errors_full += ee_full.tolist()

# Resolution matrix related evaluation criteria
R_an = collapse_RM(R_full, label, fwd['src'], mode_labels)

peak_c_an = np.argmax(abs(R_an), axis=0)
true_c_an = megicparc.membership2vector(
                    proj_anrois['parcel'][:aux_num_roi], n_vert)
correct_roi_an = np.count_nonzero(true_c_an == peak_c_an)/n_vert*100
correct_roi_an_full = np.count_nonzero(true_c_an[peak_full] == peak_c_an) \
                                /n_vert*100
_, dist_index_an = megicparc.compute_distinguishability_index(
                    R_an, proj_anrois['parcel'], aux_num_roi)

Given rank = 203 - num eigenvalues = 203

Analysis with meg-informed parcels

for idx_g, gamma in enumerate(gamma_tot):
    for idx_k, knn in enumerate(knn_tot):

        target_file = string_target_file.format(
                        subject, knn, gamma, theta)
        print('Loading %s'%target_file)
        with open(target_file, 'rb') as aux_lf:
            flame_data = pickle.load(aux_lf)

        # 1. Compute RMs
        L_fl = L[:, flame_data['centroids_id']]
        W_fl = compute_inv_op_rank(L_fl, C, lam,
                                 depth=depth, method=method)
        R_fl = np.dot(W_fl, L)

        peak_c = np.argmax(abs(R_fl), axis=0)

        # 2. Compute localization errors
        ee = megicparc.compute_localization_error(peak_c,
                                flame_data['centroids_id'], fwd['src'])
        eucl_errors['k%d_gamma%1.2f'%(knn, gamma)] += ee.tolist()


        # 3. Correctly identified regions
        true_c = megicparc.membership2vector(
                 flame_data['parcel'][:flame_data['centroids']], n_vert)
        correct_roi[idx_k, idx_g] = \
            np.count_nonzero(true_c == peak_c)/n_vert*100
        correct_roi_full[idx_k, idx_g] = \
            np.count_nonzero(true_c[peak_full] == peak_c)/n_vert*100

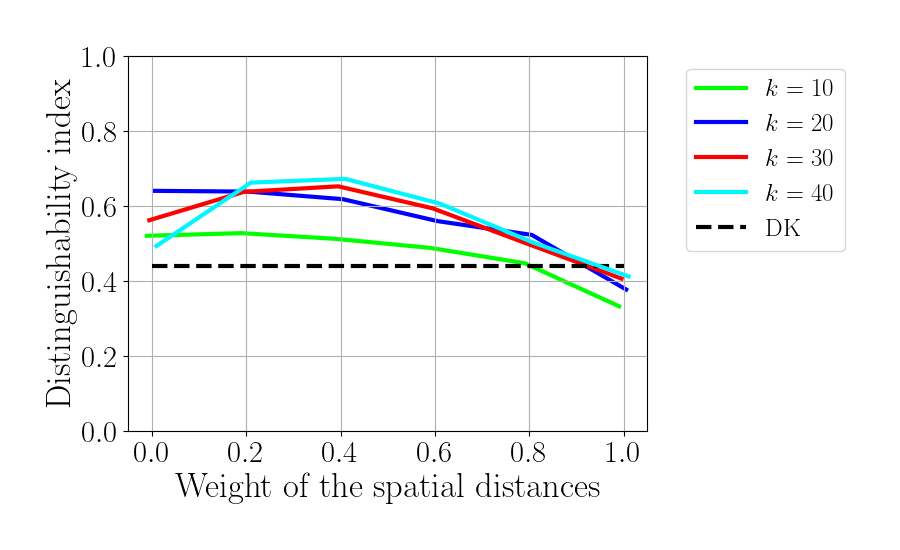

        # 4. compute DI
        _, DI = megicparc.compute_distinguishability_index(
                R_fl, flame_data['parcel'], flame_data['centroids'])
        dist_index[idx_k, idx_g] = DI

        del flame_data

Loading ../data/data_mne_sample/sample_flame_grad_k10_gamma0.00_theta0.05.pkl
Given rank = 203 - num eigenvalues = 203
Loading ../data/data_mne_sample/sample_flame_grad_k20_gamma0.00_theta0.05.pkl
Given rank = 203 - num eigenvalues = 203
Loading ../data/data_mne_sample/sample_flame_grad_k30_gamma0.00_theta0.05.pkl
Given rank = 203 - num eigenvalues = 203
Loading ../data/data_mne_sample/sample_flame_grad_k40_gamma0.00_theta0.05.pkl
Given rank = 203 - num eigenvalues = 203
Loading ../data/data_mne_sample/sample_flame_grad_k10_gamma0.20_theta0.05.pkl
Given rank = 203 - num eigenvalues = 203
Loading ../data/data_mne_sample/sample_flame_grad_k20_gamma0.20_theta0.05.pkl
Given rank = 203 - num eigenvalues = 203
Loading ../data/data_mne_sample/sample_flame_grad_k30_gamma0.20_theta0.05.pkl
Given rank = 203 - num eigenvalues = 203
Loading ../data/data_mne_sample/sample_flame_grad_k40_gamma0.20_theta0.05.pkl
Given rank = 203 - num eigenvalues = 203
Loading ../data/data_mne_sample/sample_flame_grad_k10_gamma0.40_theta0.05.pkl
Given rank = 203 - num eigenvalues = 203
Loading ../data/data_mne_sample/sample_flame_grad_k20_gamma0.40_theta0.05.pkl
Given rank = 203 - num eigenvalues = 203
Loading ../data/data_mne_sample/sample_flame_grad_k30_gamma0.40_theta0.05.pkl
Given rank = 203 - num eigenvalues = 203
Loading ../data/data_mne_sample/sample_flame_grad_k40_gamma0.40_theta0.05.pkl
Given rank = 203 - num eigenvalues = 203
Loading ../data/data_mne_sample/sample_flame_grad_k10_gamma0.60_theta0.05.pkl
Given rank = 203 - num eigenvalues = 203
Loading ../data/data_mne_sample/sample_flame_grad_k20_gamma0.60_theta0.05.pkl
Given rank = 203 - num eigenvalues = 203
Loading ../data/data_mne_sample/sample_flame_grad_k30_gamma0.60_theta0.05.pkl
Given rank = 203 - num eigenvalues = 203
Loading ../data/data_mne_sample/sample_flame_grad_k40_gamma0.60_theta0.05.pkl
Given rank = 203 - num eigenvalues = 203
Loading ../data/data_mne_sample/sample_flame_grad_k10_gamma0.80_theta0.05.pkl
Given rank = 203 - num eigenvalues = 203
Loading ../data/data_mne_sample/sample_flame_grad_k20_gamma0.80_theta0.05.pkl
Given rank = 203 - num eigenvalues = 203
Loading ../data/data_mne_sample/sample_flame_grad_k30_gamma0.80_theta0.05.pkl
Given rank = 203 - num eigenvalues = 203
Loading ../data/data_mne_sample/sample_flame_grad_k40_gamma0.80_theta0.05.pkl
Given rank = 203 - num eigenvalues = 203
Loading ../data/data_mne_sample/sample_flame_grad_k10_gamma1.00_theta0.05.pkl
Given rank = 203 - num eigenvalues = 203
Loading ../data/data_mne_sample/sample_flame_grad_k20_gamma1.00_theta0.05.pkl
Given rank = 203 - num eigenvalues = 203
Loading ../data/data_mne_sample/sample_flame_grad_k30_gamma1.00_theta0.05.pkl
Given rank = 203 - num eigenvalues = 203
Loading ../data/data_mne_sample/sample_flame_grad_k40_gamma1.00_theta0.05.pkl
Given rank = 203 - num eigenvalues = 203

Compute mean and SEM of the euclidean localication error over the points of the source-space

# Anatomy-based parcels
aux_ee = np.asanyarray(eucl_errors_full)
eucl_err_full_ave = np.mean(aux_ee)
eucl_err_full_sem = np.std(aux_ee, ddof=1) / np.sqrt(np.size(aux_ee))

# MEG-informed parcels
eucl_err_ave = np.zeros((np.size(knn_tot), np.size(gamma_tot)))
eucl_err_sem = np.zeros((np.size(knn_tot), np.size(gamma_tot)))
for idx_g, gamma in enumerate(gamma_tot):
    for idx_k, knn in enumerate(knn_tot):

        aux_ee = np.asanyarray(eucl_errors['k%d_gamma%1.2f'%(knn, gamma)])
        eucl_err_ave[idx_k, idx_g] = np.mean(aux_ee)
        eucl_err_sem[idx_k, idx_g] = np.std(aux_ee, ddof=1) / np.sqrt(np.size(aux_ee))

Define general settings for plotting

plt.rc('text', usetex=True)
plt.rc('font', family='serif', size=22)
plt.rcParams['axes.grid'] = True
plt.rcParams['lines.linewidth'] = 3
plt.rcParams['errorbar.capsize'] = 3.5
plt.rcParams["figure.figsize"] = [12, 8]
plt.rcParams['patch.force_edgecolor'] = True

colors = np.array([np.array([0, 1, 0]),
                  np.array([0, 0, 1]),
                  np.array([1, 0, 0]),
                  np.array([0, 0.9655, 1])])

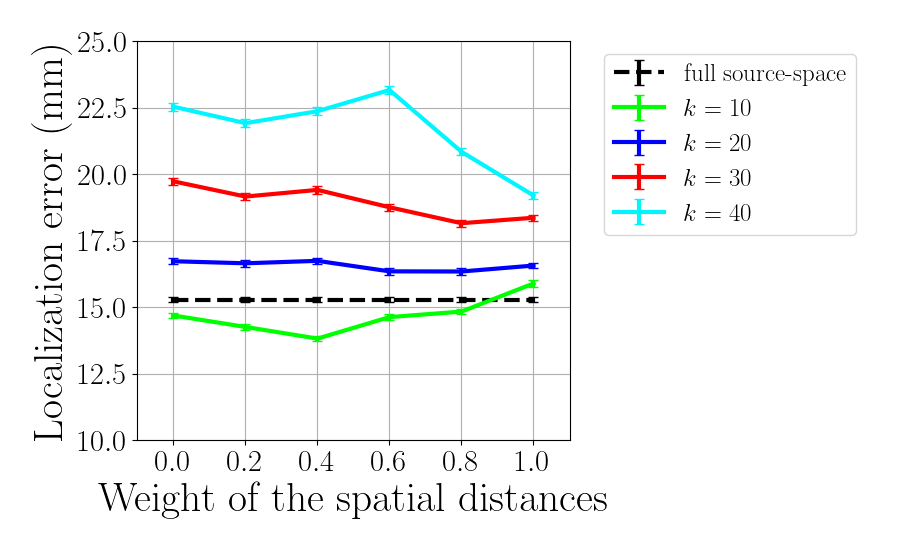

Plot Euclidean localization error

f_ee = plt.figure()
plt.errorbar(gamma_tot, eucl_err_full_ave*np.ones(np.size(gamma_tot)),
             yerr=eucl_err_full_sem*np.ones(np.size(gamma_tot)),
             fmt='k--', label='full source-space')
for idx_k, knn in enumerate(knn_tot):
    plt.errorbar(gamma_tot,
                 eucl_err_ave[idx_k, :], yerr=eucl_err_sem[idx_k, :],
                 label='$k$ = %d'%knn, color=colors[idx_k])
plt.xlabel(r'Weight of the spatial distances', fontsize=30)
plt.ylabel(r'Localization error (mm)', fontsize=30)
plt.xlim(-0.1, 1.1)
plt.legend()
if method == 'dSPM':
    plt.ylim(10, 25)
else:
    plt.ylim(0, 27)
plt.xticks(gamma_tot)
plt.legend(bbox_to_anchor=(1.05, 1.0), loc='upper left',fontsize=18)
f_ee.set_size_inches(9, 5.5)
plt.tight_layout(pad=1)

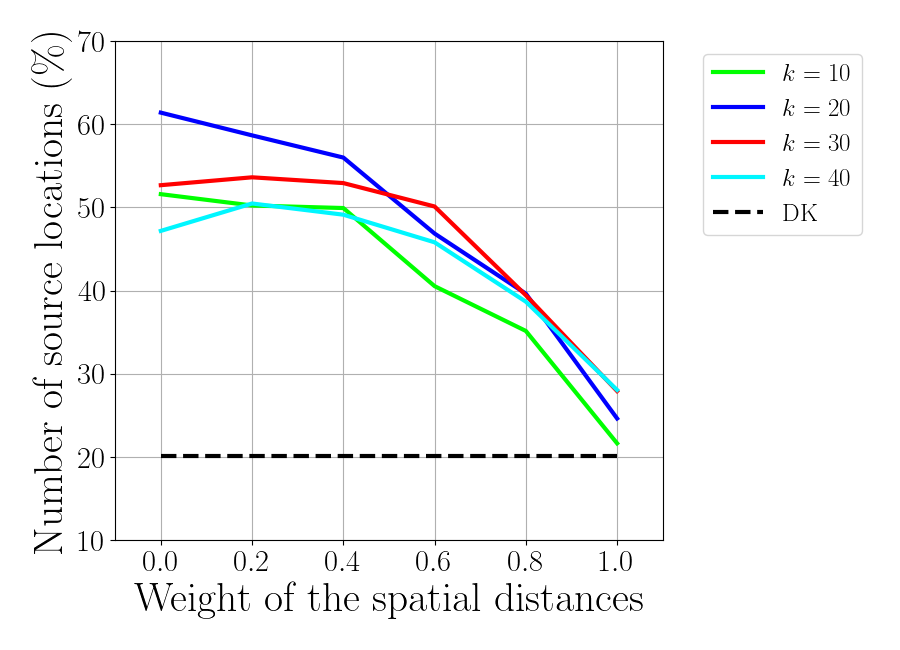

Plot percentage of corrected identified regions

f_corr = plt.figure()
for idx_k, knn in enumerate(knn_tot):
    plt.plot(gamma_tot, correct_roi[idx_k, :],
       label='$k$ = %d'%knn, color=colors[idx_k])
plt.plot(gamma_tot, correct_roi_an*np.ones(np.size(gamma_tot)),
       'k--', label='DK')
plt.xlabel(r'Weight of the spatial distances', fontsize=30)
plt.xticks(gamma_tot)
plt.ylabel(r'Number of source locations ($\%$)',fontsize=30)
plt.ylim(10, 70)
plt.xlim(-0.1, 1.1)
plt.legend(bbox_to_anchor=(1.05, 1.0), loc='upper left',fontsize=18)
f_corr.set_size_inches(9, 6.5)
plt.tight_layout(pad=1)

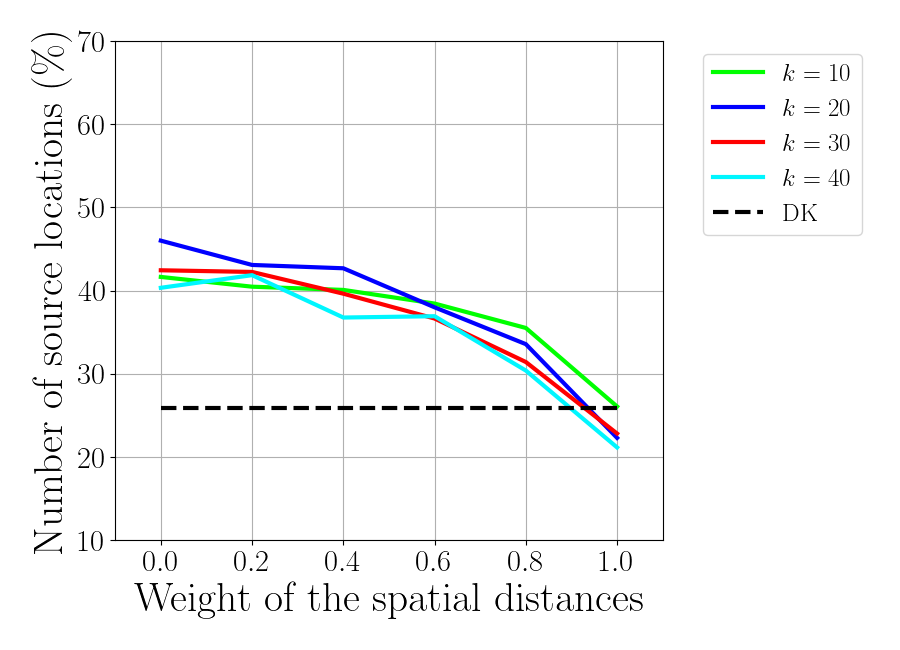

f_corr_full = plt.figure()
ax_corr_full = f_corr_full.add_subplot(1,1,1)
for idx_k, knn in enumerate(knn_tot):
    ax_corr_full.plot(gamma_tot, correct_roi_full[idx_k, :],
       label='$k$ = %d'%knn, color=colors[idx_k])
ax_corr_full.plot(gamma_tot, correct_roi_an_full*np.ones(np.size(gamma_tot)),
                  'k--', label='DK')
ax_corr_full.set_xlabel(r'Weight of the spatial distances', fontsize=30)
ax_corr_full.set_xticks(gamma_tot)
ax_corr_full.set_ylabel(r'Number of source locations ($\%$)',fontsize=30)
ax_corr_full.set_ylim(10, 70)
ax_corr_full.set_xlim(-0.1, 1.1)
plt.legend(bbox_to_anchor=(1.05, 1.0), loc='upper left',fontsize=18)
f_corr_full.set_size_inches(9, 6.5)
plt.tight_layout(pad=1)

•
•

Plot distinhuishability index

_aux = np.array([-0.01, 0.005, -0.005, 0.01])
f_DI = plt.figure()
for idx_k, knn in enumerate(knn_tot):
    plt.plot(gamma_tot+_aux[idx_k], dist_index[idx_k, :],
                 label='$k$ = %d'%knn, color=colors[idx_k],
                 zorder=idx_k)
plt.plot(gamma_tot, dist_index_an*np.ones(np.size(gamma_tot)),
        'k--', label='DK')
plt.legend(bbox_to_anchor=(1.05, 1.0), loc='upper left',fontsize=18)
plt.xlabel(r'Weight of the spatial distances', fontsize=25)
plt.ylabel(r'Distinguishability index', fontsize=25)
plt.ylim(0, 1)
plt.xlim(-0.05, 1.05)
plt.xticks(gamma_tot)

f_DI.set_size_inches(9, 5.5)
plt.tight_layout(pad=1.5)


""

''
